Furnace
MSK-1800X-KA-UL

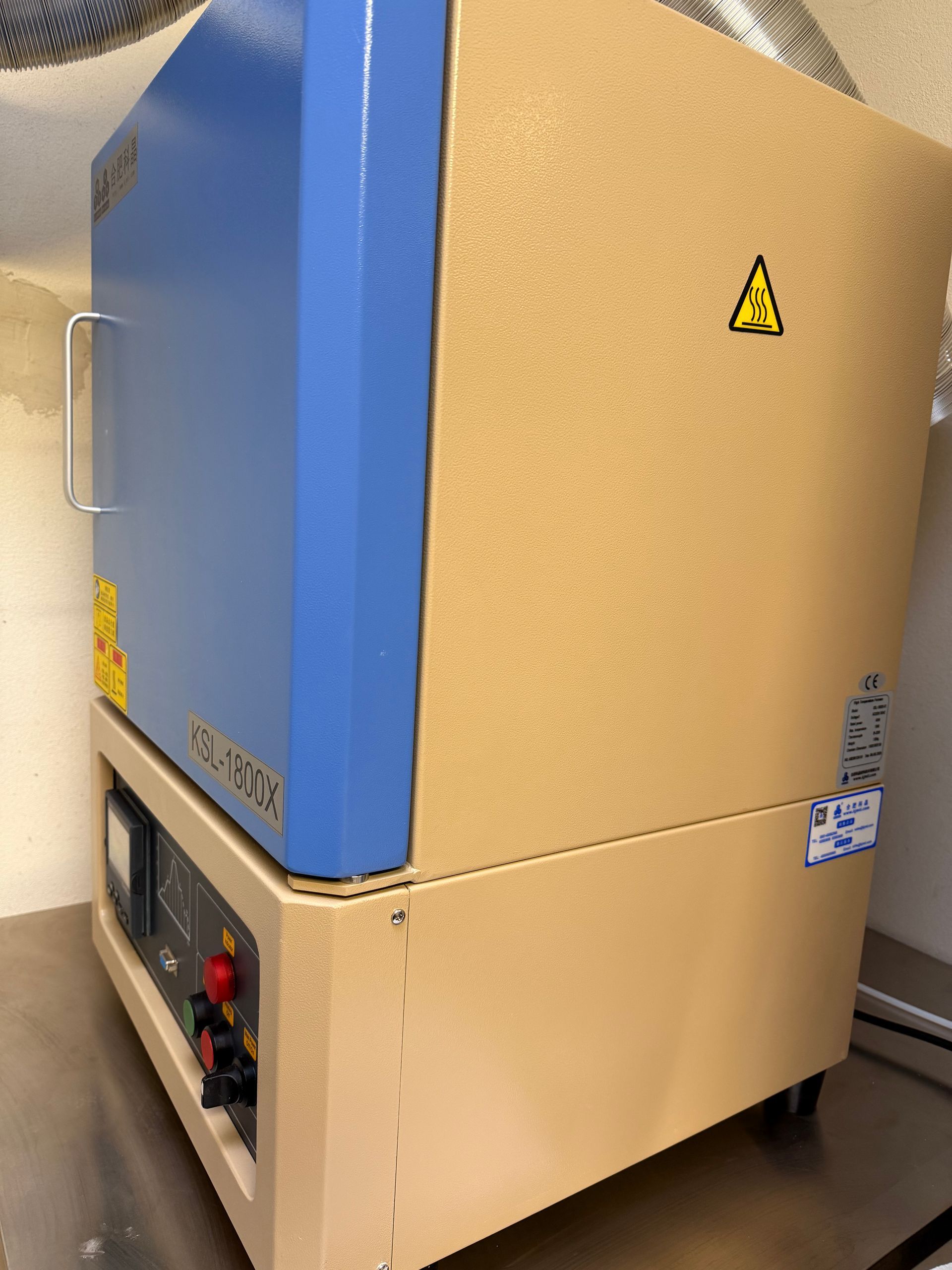

1800°C Bench-Top Muffle Furnace (150 x 150 x 150mm) with Kanthal Super-1900 Heating Elements
KSL-1800X-KA-UL is a bench-top ultra-high temperature muffle furnace built by Kanthal HT (1900 grade) MoSi2 heating elements with Max working temperature of 1800°C. It is ready to pass all safety tests worldwide.
Furnace Structure:
- Double shell steel case with a cooling fan to keep outside surface cool
- High purity alumina fiber insulation for max. energy saving
- ZrO2 ceramic liner can stand at working temperature up to 2200°C
Power: 4.8 KW
Working Temperature:
- 1800° C (< 1 hour)
- 1750° C (continuous)
Heating Rate: 0~10°C / min (suggestion =< 5°C)
Temperature Uniformity:
- +/- 5°C over 120 mm (5") @ 1700°C
- +/- 2°C over 80 mm (3") @ 1700°C
Heating Elements: Kanthal Super-1900 Grade MoSi2, 4 pcs
Temperature controller:
- Eurotherm 3000 Series Programmable Temperature Controller.
- 1 program, 24 segments programmed with ramping, cooling, and dwelling steps
- Temperature Accuracy: ± 0.1ºC
- RS485 port is built-in for PC operation
- Operation software is included for PC operation.
- Brand new laptop with Microsoft Windows 10 with pre-installed software is available upon request.
