SLA Ceramic 3D Printer

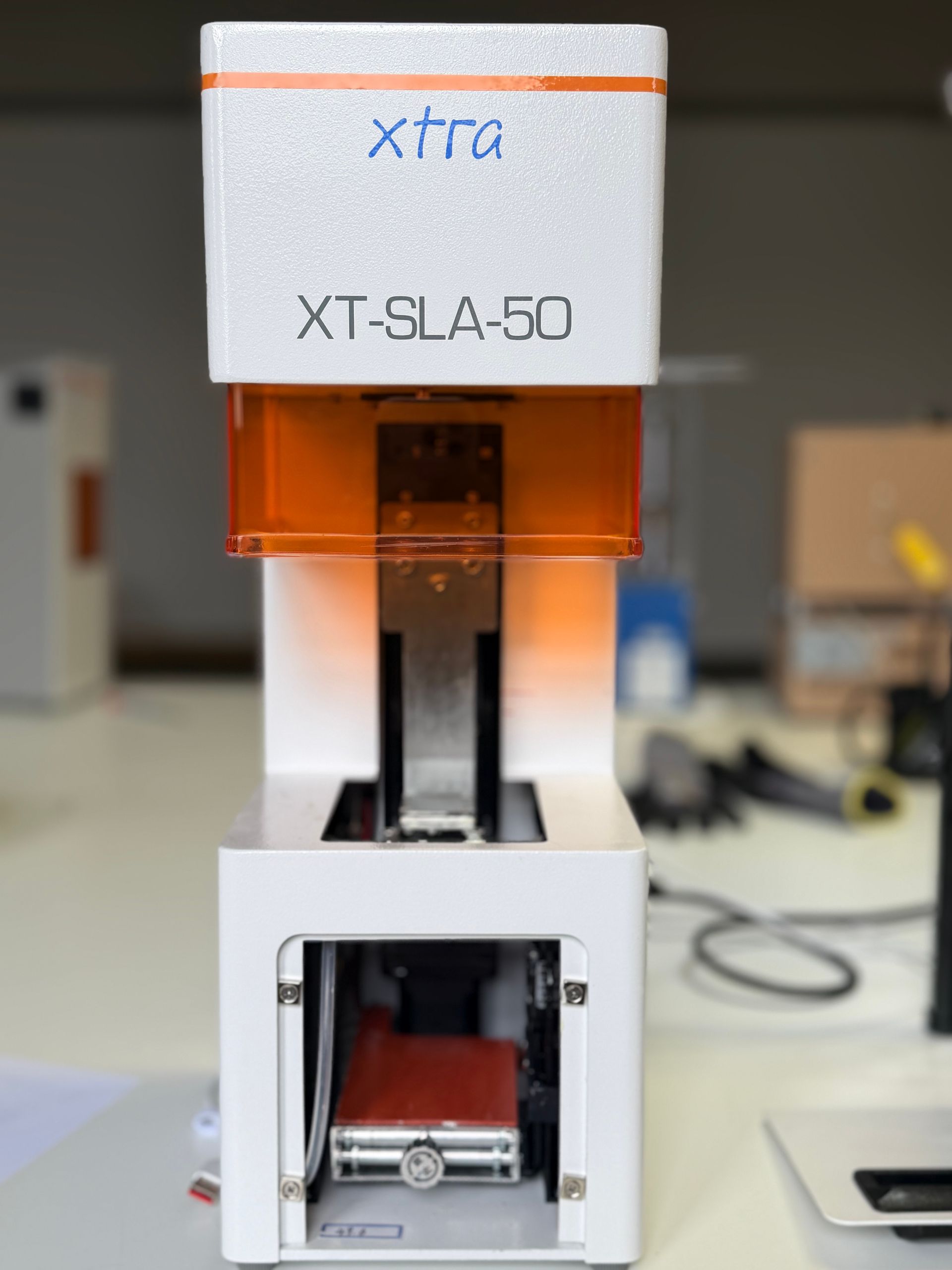

XT-SLA-50
Features:
1. Compact design for lab: 180 x 200 x 480mm, 11.5kg
2. Saving materials: start volume 150ml
3. Quick changeover between different slurry types
4. Designed for printing with thick ceramic slurrys (>80% ceramic powder)
5. Layer thickness 30-150µm
6. Open to customers' own slurries.
Technical Data
| Product Model | XT-SLA-50 | XT-SLA-100 |
|---|---|---|
| Technical type | Submerged SLA laser curing | Submerged SLA laser curing |
| Printing space | 50mm(X) x 50mm(Y) x 50mm(Z) | 100mm(X) x 100mm(Y) x 100mm(Z) |
| Printing accuracy | ≤±5µm | ≤±5µm |
| Laser power | 250mW | 250mW |
| Printing layer thickness | 30-150µm | 30-150µm |
| Laser wavelength | 405nm | 405nm |
| Laser spot diameter | 40µm | 40µm |
| Application method | Vacuum scraper coating | Vacuum scraper coating |
| Scanning speed | 10000mm/s | 10000mm/s |
| Rated power | 200W | 200W |
| Control method | External computer control | Integrated computer |
| Dimensions | 180 x 200 x 480mm | 260 x 300 x 620mm |
| Power supply | 200-240VAC 50/60Hz | 200-240VAC 50/60Hz |
| Equipment weight | 11,5kg | 30kg |
| Transmission method | USB | WIFI/USB |
| Printable materials | Al2O3, ZrO2, SiC, Si3N4, bioceramics, etc | Al2O3, ZrO2, SiC, Si3N4, bioceramics, etc |
