Slurry mixer

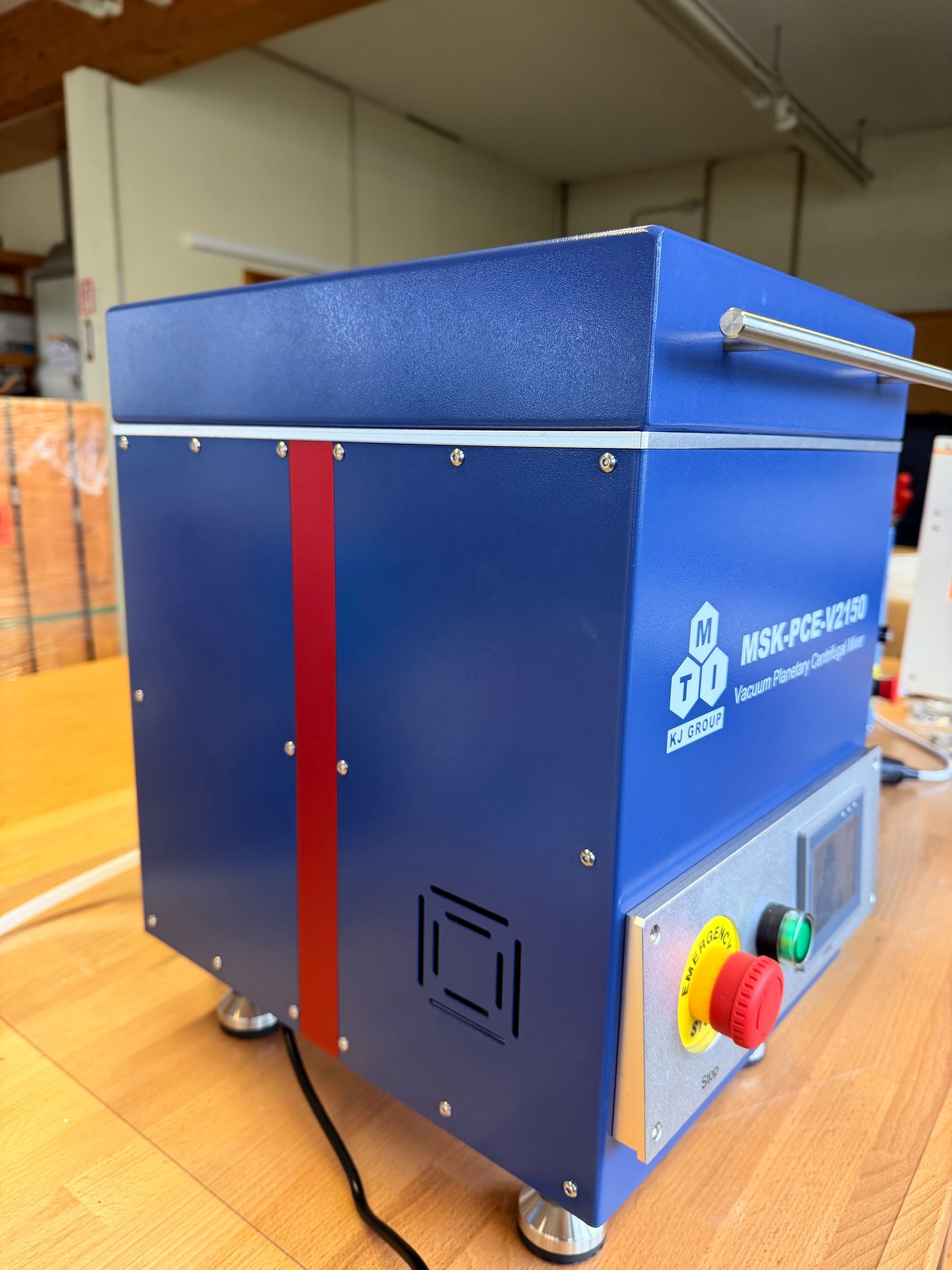

MSK-PCE-V2150
Compact Vacuum Planetary Centrifugal Mixer with Two 150ml Containers & Temperature Monitor.
The planetary centrifugal vacuum mixer MSK-PCE-V2150 is designed for mixing various kinds of liquid, slurry, paste, and powder materials. It could be used for mixing and homogenizing Nano powders, nanotubes, battery powder/slurry, and metal powders. The vacuum mixing and temperature monitor capabilities are integrated for the best mixing results.
Features:
- Mixing under vacuum for deaeration
- Automatic and Manual modes of operation
- Combination of rotation and revolution to mix samples evenly
- Temperature monitor for the chamber
- Compact size to fit in the glove box
- Minimized contamination (no metal mixing blade)
- Mix, disperse, and degas samples simultaneously
- Process up to two samples simultaneously
- Acceleration gravity: ~ 259 g
- Brushless motor to allow to use in an Ar environment
Voltage Input:
- Single Phase AC 208 - 240V, 50 Hz
- Maximum: 1000 W
Vacuum Capability:
- - 0.085 MPa Max.
- The vacuum pump is included in the standard package.
Working Time: 1-999 seconds
Speed:
- Sample Platen (revolution motion): 10-2000 rpm, accuracy 1 rpm
- Low Speed: 10-1499 rpm, continuous
- High Speed: 1500-2000 rpm, 7.5min Max.
Control Panel: touch screen panel
Temperature Detection: Chamber temperature is monitored by an IR sensor and displayed on the touchscreen. The alarm temperature can be set for various sample properties and experimental purposes.
